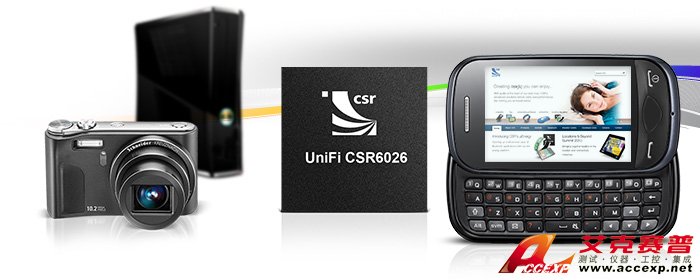

CSR UniFi CSR6026 芯片
Specifications
■CSR UniFi CSR6026 芯片Standards
IEEE 802.11n MCSO to MCS7
IEEE 802.11b/g
IEEE 802.11d/e/i/k/r/w
■CSR UniFi CSR6026 芯片IEEE 802.11n Features
STBC, RIFS, A-MPDU, A-MSDU, PSMP, Short Guard Interval
Greenfield Preamble, Block Ack aggregation, MTBA
■CSR UniFi CSR6026 芯片Data Rates
IEEE 802.11n : 72.2, 65, 58.5, 57.8, 52, 43.3, 39, 28.9, 26, 21.7, 19.5, 14.4, 13, 7.2, 6.5Mbps
IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6Mbps
IEEE 802.11b : 11, 5.5, 2, 1Mbps
■CSR UniFi CSR6026 芯片Modulation
CCK, DSSS, OFDM with BPSK, QPSK, 16-QAM and 64-QAM
■CSR UniFi CSR6026 芯片F(xiàn)requency Support
2.4GHz to 2.497GHz
■CSR UniFi CSR6026 芯片Operating Channels
N. America: 11 channels, Europe: 13 channels, Japan: 14 channels CCK, 13 channels OFDM
■QoS
WMM, WMM Power Save (WMM-PS), IEEE 802.11e (including Admission Control)
■CSR UniFi CSR6026 芯片Security
WEP40/64, WEP104/128, TKIP, SMS4 and AES in hardware acceleration
WPA, WPA2, IEEE 802.11i, IEEE 802.1X, WAPI
■CSR UniFi CSR6026 芯片Wi-Fi Alliance
Designed to meet: 11n ASD2, WPA2-Personal, WPA2-Enterprise, WMM, WMM Power Save
■Host Interfaces
4-bit and 1-bit SDIO, SD SPI, CSPI
■OS Support
Windows Mobile 7, 6.1 and 6.0, Windows CE5, Linux v2.6
